Precision Mold Components Manufacturing
Precision Mold Components Manufacturing
Ming-Li Precision manufactures Precision Mold Core, Precision Mold Slide, Precision Mold Insert, Precision Mold Plate, and Precision Mold Base components for demanding injection tooling systems.
Supported by YASDA ±1 μm ultra-precision machining, GF AgieCharmilles EDM & Wire Cut systems, direct hard milling, optional DLC slide solutions, and ZEISS metrology validation, Ming-Li delivers mold component precision engineered for long-term stability, flash control, wear resistance, and dimensional repeatability.
Five Critical Mold Components
- Precision Mold Core
- Precision Mold Slide
- Precision Mold Insert
- Precision Mold Plate
- Precision Mold Base
What Is Precision Mold Components Manufacturing?
Precision Mold Components Manufacturing refers to the ultra-precision machining and engineering of individual mold parts that collectively determine mold performance, dimensional consistency, flash control, and lifetime repeatability.
Unlike conventional machining, high-end mold component manufacturing demands micron-level control because even microscopic deviation may result in flash generation, part mismatch, mold wear, poor shut-off sealing, insert displacement, dimensional instability, or reduced mold life.
Precision Mold Core
Defines product geometry through direct hard milling of hardened tool steels, reducing EDM dependency and minimizing heat-affected white layer risk where applicable.
Precision Mold Slide
Controls side actions and tight shut-offs. Supports optional DLC coating and wear-resistant treatments for selected cleanroom or oil-sensitive applications.
Precision Mold Insert
Provides replaceable wear surfaces with micron-level shut-off engineering to minimize flash risk and support fast engineering modifications.
Precision Mold Plate
Maintains flatness, parallelism, and pitch spacing consistency under intensive clamping forces and high cavity pressure.
Precision Mold Base
Serves as the rigid structural foundation, with custom tool steel options to resist thermal warping in high-temperature PEEK or LCP tooling.
Integrated Tooling System
Every custom component can be tracked through coordinate metrology to support seamless interchangeable assembly.

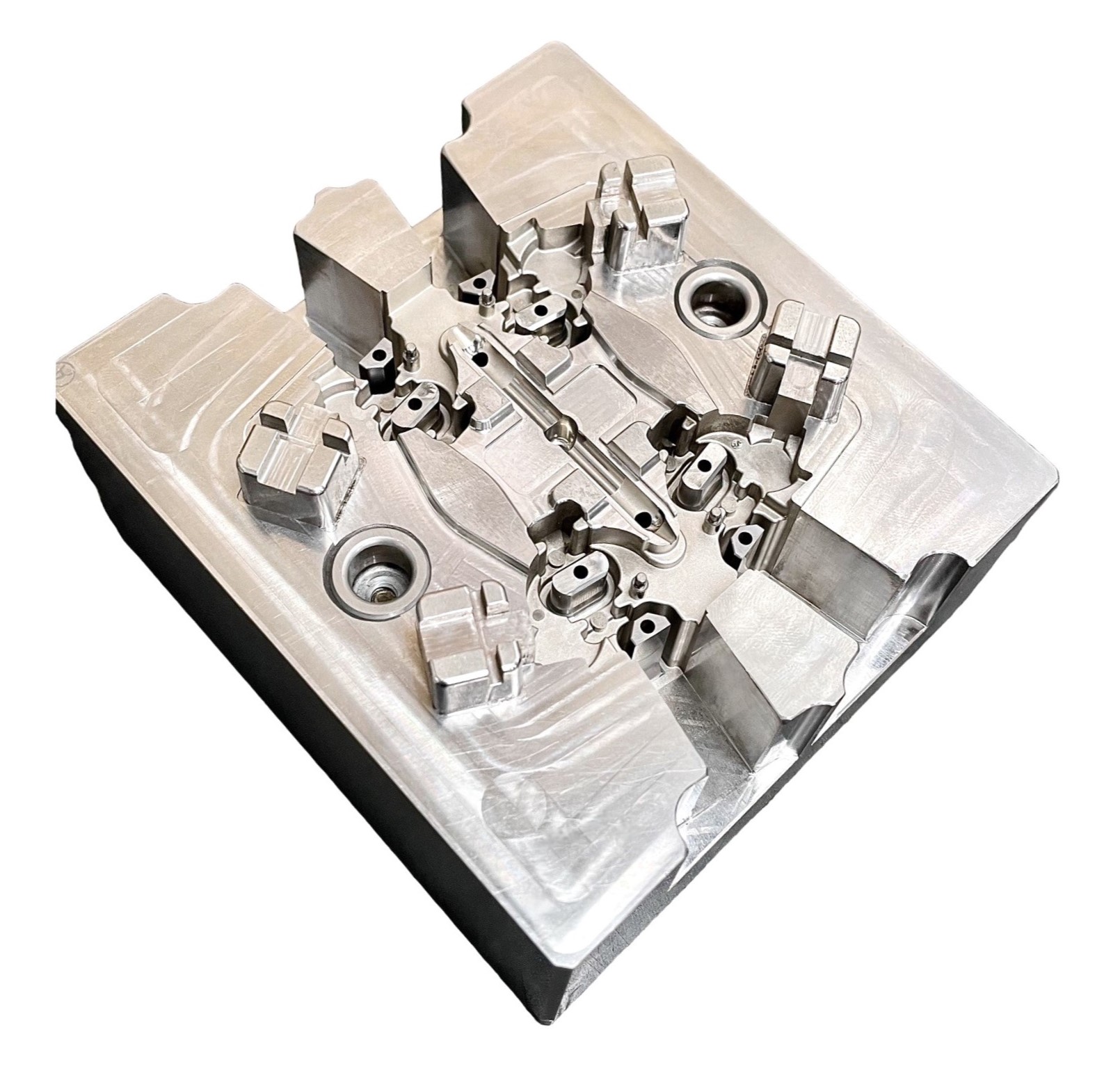

Precision Mold Core Manufacturing
A Precision Mold Core is the heart of mold accuracy. It directly determines product geometry, surface quality, dimensional precision, parting line quality, draft consistency, and micro-feature formation.
Ming-Li supports direct hard milling of hardened tool steels up to 58–62 HRC for selected mold core applications, reducing EDM dependency and minimizing heat-affected white layer risk where applicable. This improves crisp edge retention, micro-feature quality, and long-term mold life.
Ming-Li also supports micro mold core manufacturing for miniature connectors, micro gears, medical devices, optical alignment systems, and semiconductor-related precision components.
- YASDA ultra-precision hard milling
- Direct hard milling up to 58–62 HRC
- GF mirror EDM technology
- Reduced EDM white layer risk
- ZEISS metrology verification
- Micro mold core capability

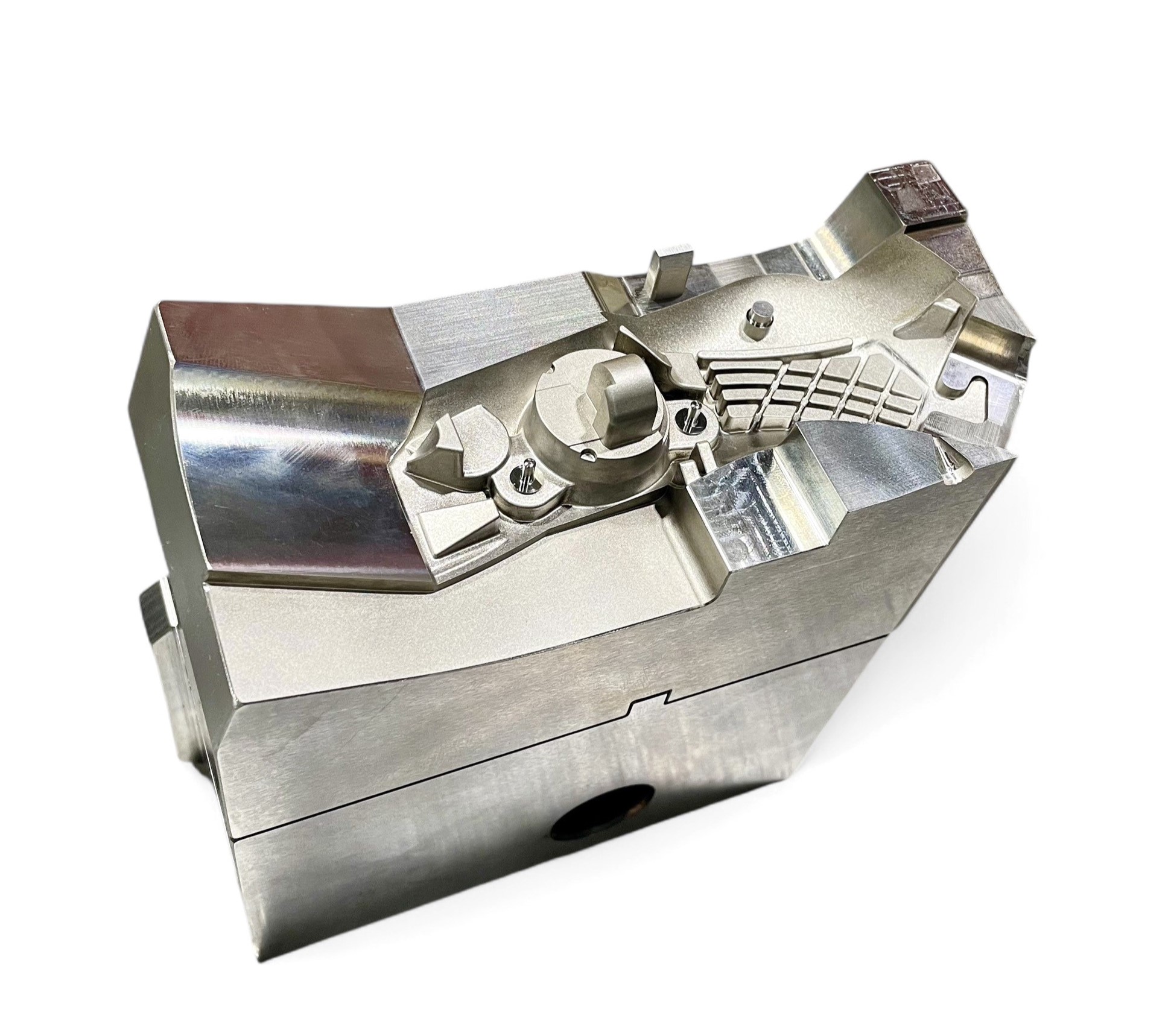

Precision Mold Slide Manufacturing
A Precision Mold Slide controls side features and undercuts while maintaining ultra-tight shut-off surfaces. Mold slides are often one of the most failure-prone components in precision tooling because small slide movement variation can create flash, mismatch, wear deformation, galling, or alignment deviation.
Micron-Level Alignment
Precision mold slide machining helps maintain shut-off accuracy and reduce dimensional mismatch.
Flash Control
Ultra-tight shut-off surfaces are critical for connector molds, insert molding molds, and automotive tooling.
Optional DLC Coating
Selected Precision Mold Slide systems may use DLC coating or wear-resistant slide treatments for cleanroom, medical, or oil-sensitive tooling applications.
Oil-Free Running Support
For selected medical and semiconductor applications, slide clearance, surface finish, and wear-plate design can be engineered to support low-contamination operation.
Galling Prevention
Material selection, surface treatment, and slide fit are reviewed to reduce galling risk during long production runs.
High-Precision EDM
GF EDM finishing supports complex side-action geometry and stable shut-off performance.

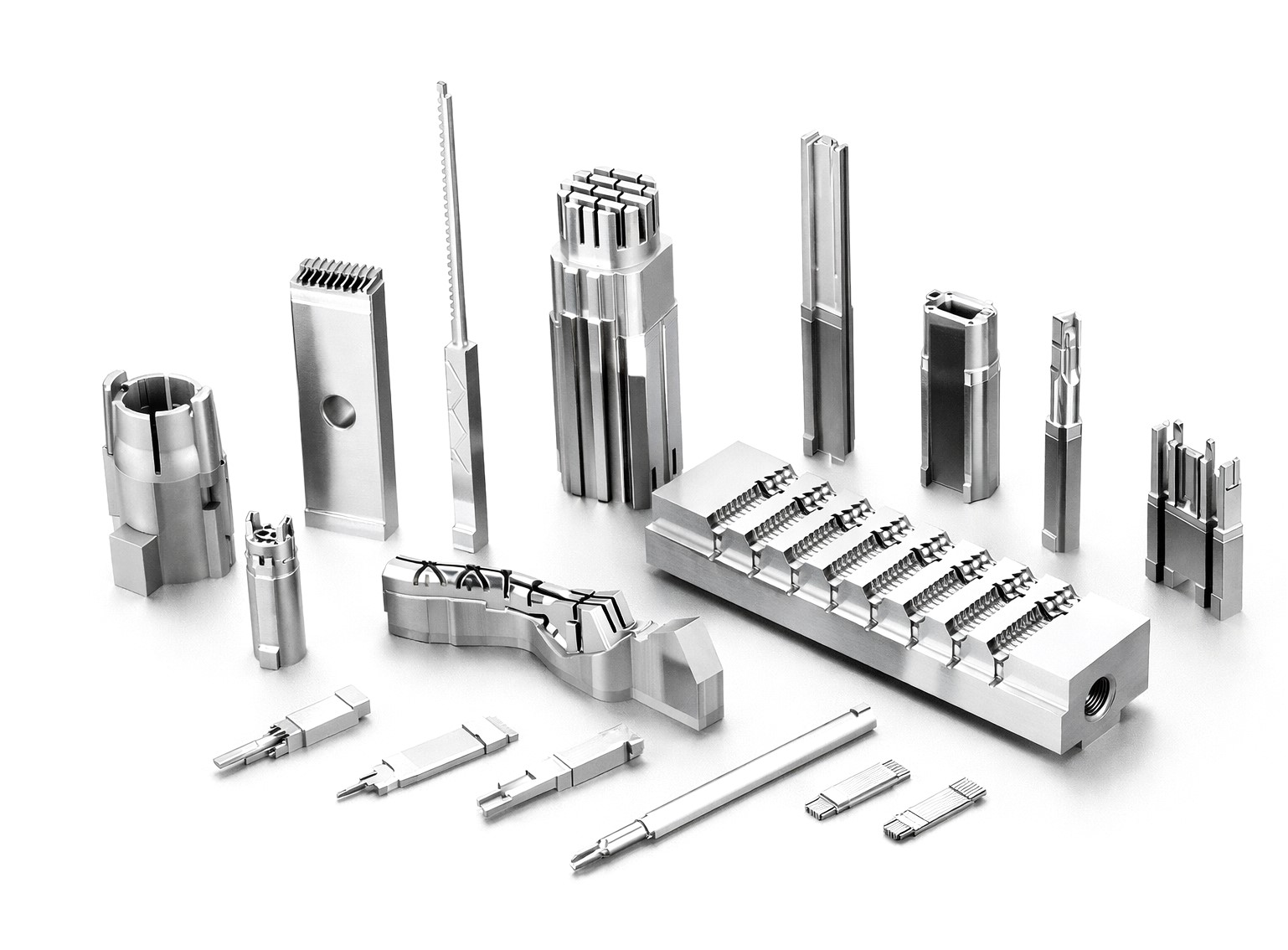

Precision Mold Insert Manufacturing
A Precision Mold Insert provides localized dimensional precision while improving mold maintenance flexibility. Instead of reworking the entire mold cavity, localized insert replacement can dramatically reduce downtime, engineering modification cost, and lead time.
Ming-Li manufactures micro mold inserts, connector mold inserts, wear-resistant inserts, and custom precision mold inserts with micron-level shut-off engineering to minimize flash risk in connector, medical, semiconductor, and micro molding applications.
- Micro mold insert manufacturing
- Connector mold insert supplier capability
- Replaceable hardened insert design
- Interchangeable insert strategy
- Precision shut-off surface control
- High wear-resistant insert strategy

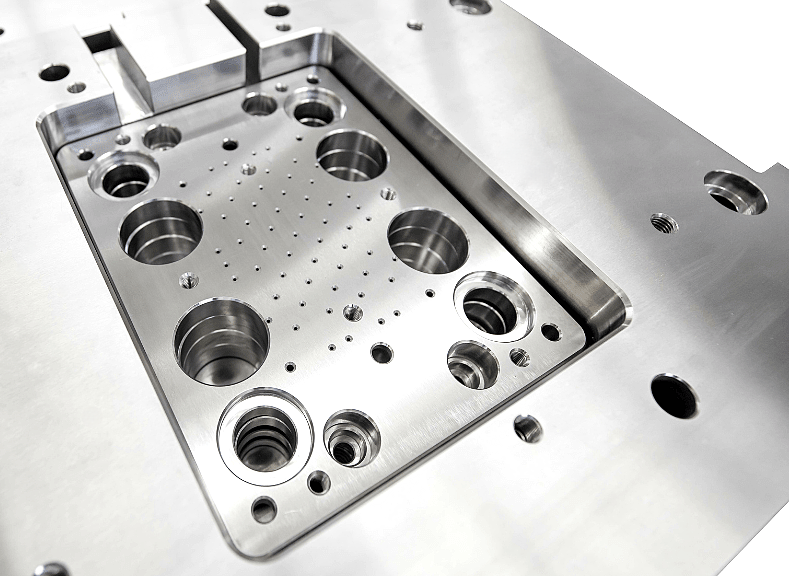

Precision Mold Plate Manufacturing
Precision Mold Plate quality defines mold flatness, parallelism, clamping stability, pitch spacing consistency, and cavity alignment. Even highly accurate cavities may fail if the Precision Mold Plate lacks structural rigidity and micron-level flatness.
High-precision mold plate machining is essential for maintaining mold repeatability and long-term production consistency. Ming-Li supports Precision Mold Plate grinding and machining for multi-cavity tooling, connector molds, medical production molds, 2K mold systems, and high-temperature plastic molds.
Mold Plate Grinding
Precision mold plate grinding supports micron-level flatness, parallelism, and alignment consistency.
Pitch Spacing Consistency
Precision Mold Plate machining helps maintain cavity-to-cavity repeatability in high-cavitation tooling.
High Pressure Stability
Precision Mold Plate rigidity helps resist deflection under intensive clamping force and high cavity pressure.

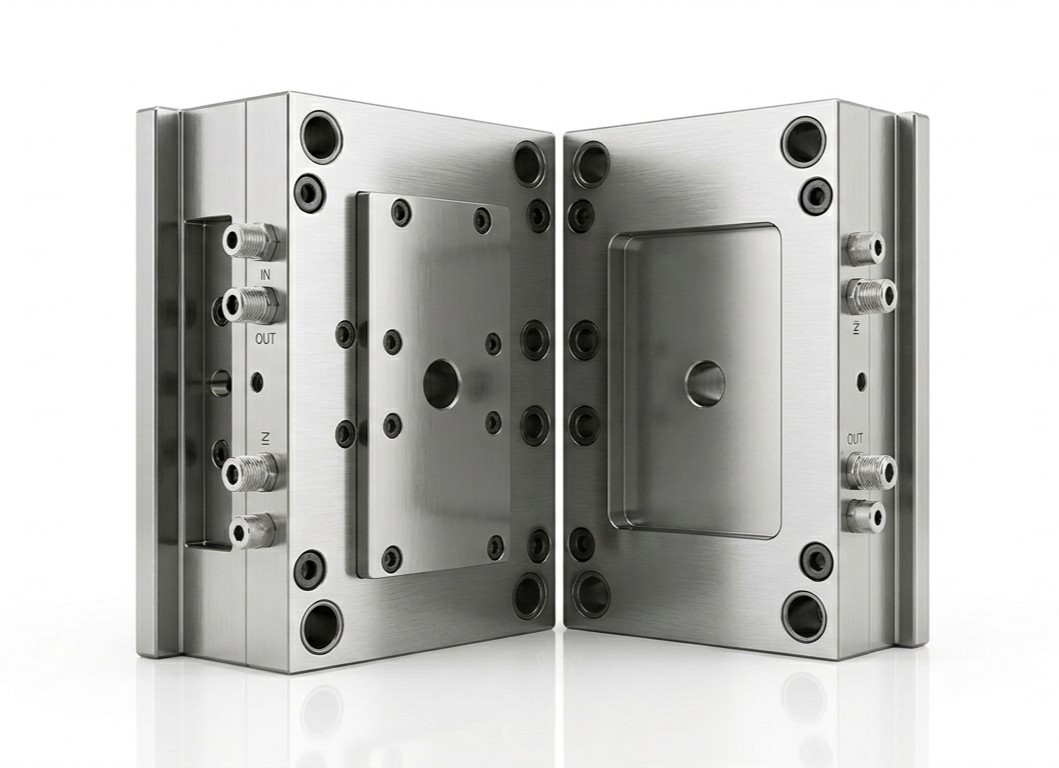

Precision Mold Base Manufacturing
A Precision Mold Base serves as the structural foundation that determines mold repeatability, rigidity, alignment, and long-term dimensional stability. Poor mold base accuracy can cause mold instability, poor alignment, uneven force distribution, increased wear, and reduced mold life.
Ming-Li supports Precision Mold Base and high precision mold base machining compatible with DME, HASCO, and custom mold base standards, with precision alignment features for demanding tooling systems.
For high-temperature tooling such as PEEK, PPS, and LCP molds, Precision Mold Base design may include custom tool steel options and thermal warpage resistance strategies.
- Precision mold base machining
- DME / HASCO compatibility
- Custom precision mold base solutions
- High structural rigidity
- Thermal warpage resistance
- Long-term mold repeatability
Common Mold Component Failure Risks
| Critical Area | Poor Supplier Risk | Ming-Li Precision Solution |
|---|---|---|
| Precision Mold Core | Dimensional drift, edge chipping, and cavity deviation | YASDA ±1 μm hard milling, 58–62 HRC direct milling support, and ZEISS validation |
| Precision Mold Slide | Flash, mismatch, galling, and wear | Precision shut-off engineering, low-friction slide design, and optional DLC coating |
| Precision Mold Insert | Premature wear and long repair downtime | Replaceable hardened inserts, interchangeable insert strategy, and micron-level shut-off control |
| Precision Mold Plate | Poor flatness, uneven clamping, and flash | Micron-level mold plate grinding, parallelism control, and pitch spacing consistency |
| Precision Mold Base | Structural instability and reduced mold life | Rigid precision mold base engineering, thermal stability, and alignment control |
Why Engineers Choose Ming-Li Precision
YASDA ±1 μm Machining
Ultra-precision hard milling for critical mold core, insert, slide, and cavity features.
Direct Hard Milling
Selected hardened tool steels up to 58–62 HRC can be machined to improve edge definition and reduce EDM dependency.
GF EDM & Wire Cut
Ultra-fine geometry processing for complex mold details, shut-off edges, and micro features.
ZEISS Metrology
Advanced CMM and CT validation for precision mold component consistency and interchangeability.
Cleanroom-Oriented Slide Options
Optional DLC coating and oil-sensitive slide design concepts for selected medical or semiconductor tooling programs.
Micro & Insert Molding Expertise
Supporting complex precision mold component systems for micro molding, connector molds, and insert molding programs.
Precision Mold Component Development Process
Ming-Li supports customers from tooling concept review to ultra-precision mold component manufacturing and validation.
DFM Review
Component Design
±1 μm Machining
EDM / Wire Cut
ZEISS Validation
Frequently Asked Questions
What is a Precision Mold Core?
A Precision Mold Core is the cavity-forming component responsible for molded part geometry, surface quality, dimensional accuracy, and micro-feature formation.
What steel hardness and materials can Ming-Li process for Precision Mold Cores?
Ming-Li works with high-grade tool steels including VIKING, SKD61, S136, ASP23, and A.FINKL. For selected applications, our YASDA CNC centers support direct hard milling on steels heat-treated to approximately 58–62 HRC. Selected carbide or high-wear materials may be evaluated case by case.
Can Ming-Li manufacture micro mold core components?
Yes. Ming-Li supports micro mold core manufacturing for miniature connectors, micro gears, medical devices, optical alignment systems, and semiconductor-related precision components.
Do you support custom mold slides for cleanroom or oil-free applications?
Yes. For medical device, semiconductor, and high-pin-count electronic connector molds, Ming-Li can engineer Precision Mold Slide assemblies with optional DLC coating, wear-resistant slide treatments, and controlled clearance design for selected cleanroom or oil-sensitive applications.
How does Ming-Li prevent flash in Precision Mold Slide systems?
Flash risk is reduced through precision mold slide machining, ultra-tight shut-off surfaces, micron-level alignment, surface finish control, and wear-resistant sliding design.
Are Ming-Li replaceable mold inserts fully interchangeable?
Interchangeability is a core target of our Precision Mold Insert manufacturing. Supported by YASDA ±1 μm machining repeatability and ZEISS CMM verification, replacement or ECN inserts can be engineered to fit existing pockets with minimal manual fitting, depending on mold condition and design requirements.
What is the benefit of replaceable Precision Mold Inserts?
Precision Mold Insert replacement allows localized dimensional correction, engineering modification, and wear replacement without rebuilding the entire mold cavity, reducing downtime and tooling modification cost.
Why is Precision Mold Plate flatness important?
Precision Mold Plate flatness and parallelism directly affect mold alignment, clamping stability, flash control, pitch spacing consistency, and long-term dimensional repeatability.
Why does Precision Mold Base precision matter?
A Precision Mold Base provides the structural foundation for cavity alignment, mold rigidity, force distribution, thermal stability, and long-term production repeatability.
What tolerance can Ming-Li maintain for precision mold components?
Depending on geometry and application, Ming-Li supports mold component precision up to ±1 μm for selected critical tooling features.
Does Ming-Li support custom precision mold components?
Yes. Ming-Li supports fully customized Precision Mold Components Manufacturing according to customer tooling requirements and integrated production programs.
Looking for Precision Mold Components Manufacturing?
Ming-Li Precision supports customers from DFM review, precision mold component engineering, ultra-precision machining, hard milling, EDM & Wire Cut manufacturing, ZEISS validation, and long-term production support.
Contact Us
